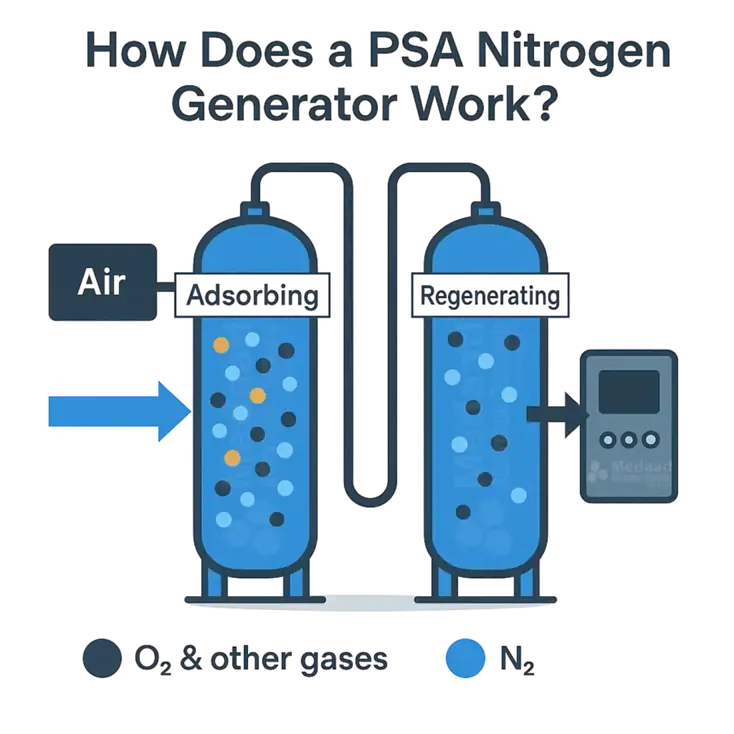

How Does a PSA Nitrogen Generator Work?

Home - How Does a PSA Nitrogen Generator Work?

A PSA nitrogen generator creates high purity nitrogen on site by compressing ambient air and separating its components inside two adsorption vessels packed with Carbon Molecular Sieve (CMS). Oxygen, moisture and carbon dioxide are preferentially captured by the CMS because these molecules diffuse into the carbon’s micropores faster than nitrogen. While one vessel adsorbs at elevated pressure, the other vessel is regenerated at low pressure. Automated valves switch the roles in a repeating cycle, so the plant receives a continuous stream of nitrogen at the specified purity, flow and pressure.

What is PSA and why Carbon Molecular Sieve matters

Pressure Swing Adsorption separates gases by exploiting differences in how quickly molecules diffuse into an adsorbent. Carbon Molecular Sieve is the core media: its ultra uniform micropores are tuned so O₂, diffuse into the carbon much faster than N₂.

Why CMS is ideal for PSA N₂:

Scalable: predictable capacity from lab to plant scale skids.

Kinetic selectivity: O₂ enters CMS pores more rapidly than N₂.

High mechanical strength: resists dusting/crushing during rapid cycling.

Stable performance: long service life when protected from oil/water.

How a PSA Nitrogen Generator Works

A PSA system produces nitrogen by passing compressed air through Carbon Molecular Sieve (CMS), which selectively adsorbs oxygen and trace gases, leaving behind a high purity nitrogen stream. The Cms Nitrogen generator applies this adsorption process in alternating cycles, ensuring a stable and continuous nitrogen supply with reliable purity for industrial use.

Air intake & compression: Ambient air filtered and compressed.
Adsorption (Vessel A online): Compressed, dry air flows upward through CMS. Oxygen adsorbed while nitrogen passes into the buffer tank.
Equalization: A portion of product nitrogen equalizes pressure to the standby vessel, boosting efficiency.
Desorption (Vessel B regenerates): The offline vessel depressurized (often with purge) to release oxygen and other gases to vent.
Repressurization: The regenerated bed brought back to line pressure and prepared for the next cycle.
Continuous supply: A PLC automatically switches valves within seconds to minutes, ensuring an uninterrupted nitrogen stream for your process.

Typical performance:

Purity: 99.999% N₂.
Pressure: Usually 5–10 barg outlet.
Dew point: Often –40 °C or better after proper drying.
Flow: Sized to your Nm³/h.

Where Carbon Molecular Sieve fits (and how to choose it)

If PSA is the “engine,” CMS is the piston. Selecting the right CMS ensures target purity at the lowest air consumption.

Key CMS specifications to evaluate:

Nitrogen yield / productivity at target purity (air:N₂ ratio).
Pellet size & distribution (e.g., 1.0–1.5 mm or 1.5–2.0 mm) for pressure drop vs. mass transfer.
Crushing strength & abrasion index for long life.
Bulk density to estimate bed mass and vessel sizing.
Oxygen adsorption rate constants (kinetic selectivity indicators).
Moisture/oil tolerance (always protect with proper pretreatment).

SorbiTech™ Carbon Molecular Sieve (CMS): engineered for high kinetic selectivity, low dusting, and stable long term cycling. Ideal for retrofits and new PSA nitrogen skids.
